- •16 Channels DSP with HD Player
•8 Analog Inputs (RCA + High Level), 5 Digital Inputs, 16 Analog Outputs
•Modular device: High-end solution with 18 independent PCB
•Player & DSP: All-in-one dual core processor
•DSP Processor: OMAP L-138 – 2 x 456 MHz, 32 Bit (till 64-bit/IEEE double precision)
•DSP Processor Point: Fixed & Floating
•DSP Sampling Rate: 96 KHz
•Player power: 456 Mhz – Arm 9 32 Bit. Read till 192 KHz/24 bit
•File Audio formats: WAV, AIF, AIFF, FLAC, ALAC, AAC, MP3, Direct.: File or Artist/Album or Title
•USB memory stick support: Formatted FAT32 with limited memory space (2 TB)
•ADC Processor (standard): AK5558, 32 Bit, 784 KHz, 115 dB DNR
•ADC Processor (option B): AK5578, 32 Bit, 784 KHz, 121 dB DNR
•DAC Processor (standard): AK4458, 32 Bit, 784 KHz, 115 dB DNR (*8ch)
•DAC Processor (option B): AK4490, 32 Bit 784 KHz, 120 dB DNR (*8ch)
•DAC Processor (option A): ES9038PRO, 32 Bit, 784 KHz, 132 dB DNR (*8ch)
•Frequency response: 5Hz @ 45 KHz
•THD+N: 0,0008 (Digital Input), 0,001 (Analog Input) 1V Out
•S/N Device Floor Noise: -125 dB (from 20 Hz to 20 KHz), -135 dB (from 150 Hz to 20 KHz), -140 dB (average from 80 Hz to 20 KHz)
•S/N Ratio (Digital Inputs): from 115 to 120 dB A
•S/N Ratio (Analog Inputs): from 109 to 115 dB A
•Crosstalk: > 110 dB (from 300 Hz to 0.9 KHz)
•Crosstalk: average 115 dB (from 300 Hz to 0.9 KHz)

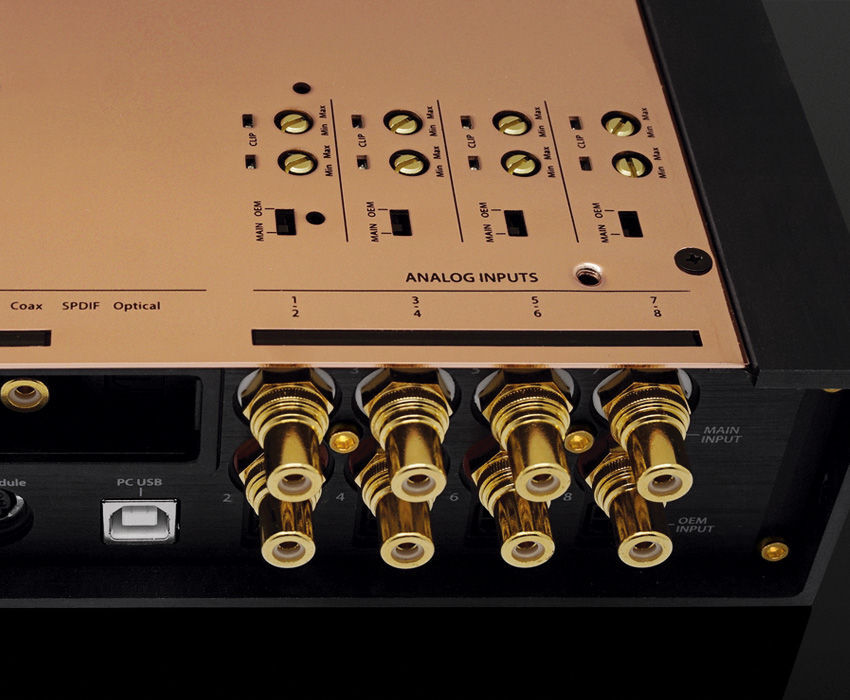

•Analog Inputs: 6/8 x RCA Low Level 1/5 Volt, 8 x High Level 4/20 Volt
•Digital Inputs: Optical: 24 Bit – 192 KHz, SPDIF: 24 Bit – 192 KHz, 3 x i2S: 24 Bit – 192 KHz

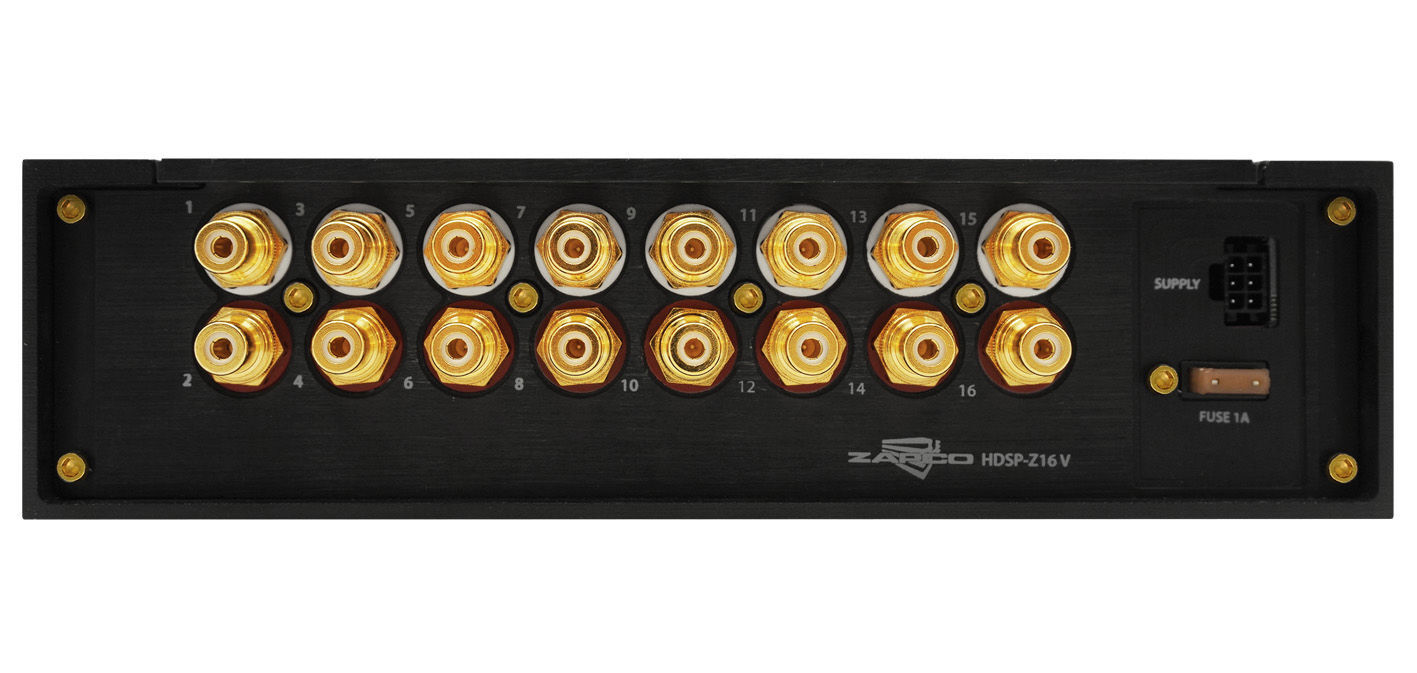

•Analog Outputs: 16 x RCA, 4 Volt (5 KOhm), Impedance: 100 Ohm

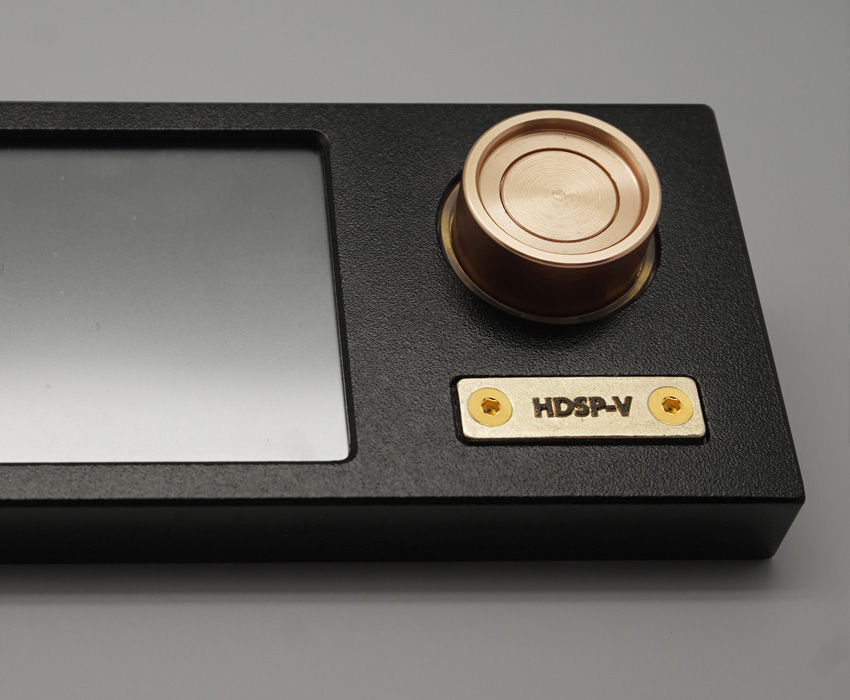

•Dash Board: 3″ Touch Screen, 10 Preset
•Dash Board Control: Volume/Balance/Fader/Tone
•Wireless Control: Wi-Fi External Module (incl.)
•BT Streaming: External APTX HD Module (opt.)
•Tuning: Easy and Expert, “Double Front”
•I/O Setup: 2ch, 4ch, 6ch, 8ch, OEM SUM, AUX
•Digital Input Mode: HD, Optical, Coax, i2S 1, 2, 3
•EQ Parametric 30 / 6 poles
•XO Filters: Linkwitz, Butterw., Bessel, Tsecheb.
•Phase Filter: All channels 1Hz/1 Degree step
•VSEQ Filter: 50-200 Hz – 1 Hz step
•Power Supply: Operating: 6-16 Volt, Current Draw: 750 mA/14.4 V, Fuse: 1A
•Stop-Start ignition system support
•Main unit overall dimensions (mm): 217(L) x 164(W) x 57(H)
•Dash Board dim. (mm): 111(L) x 16(W) x 49(H)
